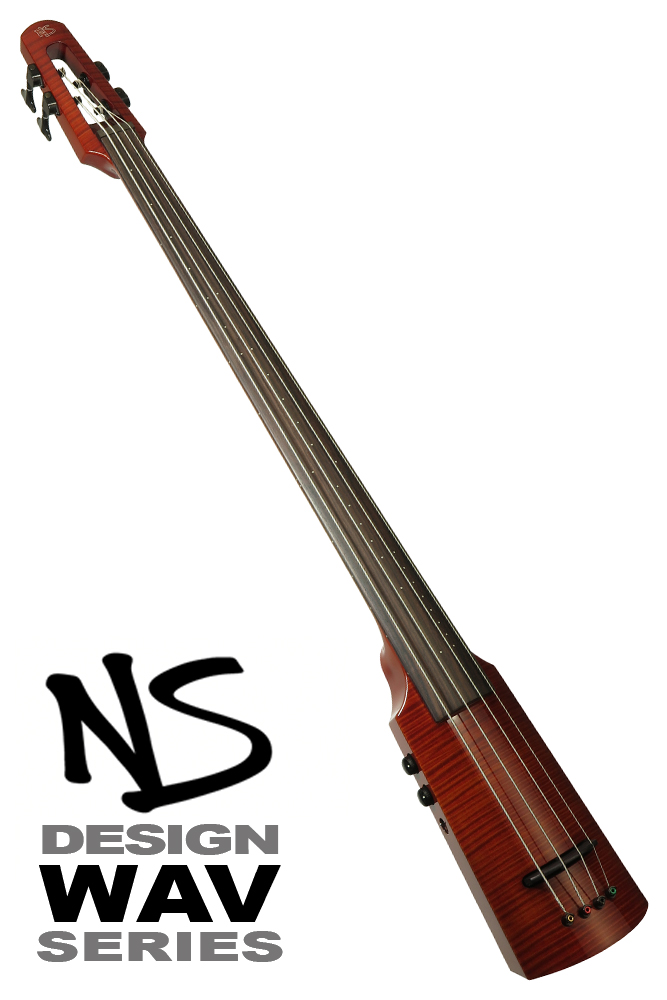

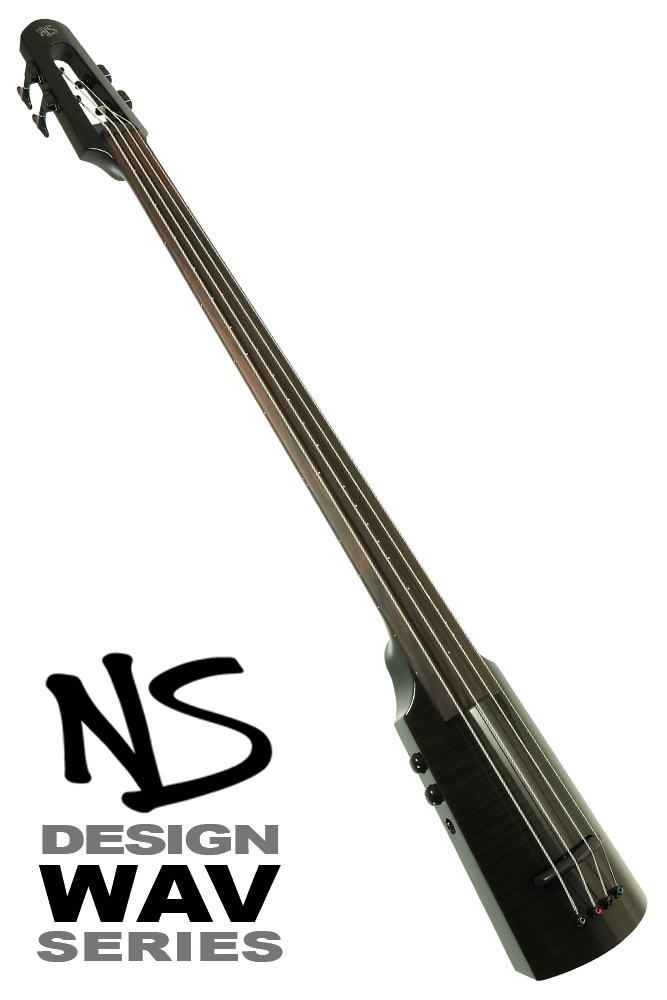

NS Design WAV4 Omni Bass

UK Price:  £1,126.00 Inc. 20% VAT
Worldwide Price: £938.33



The NS Design Omni Bass, with its familiar 34" bass guitar scale, is the perfect choice for bass players interested in adding the character, expressiveness and tonal purity of an acoustic double bass to their performance palette, or for intrepid cellists seeking a radically modern means of musical expression.

The new, competitively priced WAV Omni Bass range comprises a choice of four and five string configurations, with a variety of high gloss, flame maple Amberburst, Transparent Black and Transparent Red finishes.

34" Scale

The 34" scale length of the Omni Bass is the same as a standard electric bass. Tuned in fourths (E-A-D-G for the 4 string Omni Bass and B-E-A-D-G or E-A-D-G-C for the 5 string model), the fingering positions and spacing are identical to the bass guitar, and therefore immediately familiar to any bass player.

Solid Maple Construction

The solid maple body and neck, together with the graduated ebony fingerboard, deliver a rich, full tone that rings true for every note. The adjustable bridge and truss rod allow for low, fast action, or for higher string settings that encourage the traditional acoustic player to 'dig in' with gusto.

TransRadius™ Fingerboard

All fretless Omni Bass models feature the NS TransRadius™ fingerboard which employs a unique compound curve to provide the comfort and ease of a nearly-flat profile as the fingerboard approaches the nut, while transitioning to a curvature optimized for either plucked or bowed performance at the bridge.

For a left-hand feel which is familiar to an experienced bass guitarist the radius at the nut is 9.25", whilst at the end of the fingerboard near the bridge the radius is just 2" — large enough to maintain good string-to-string articulation with the bow, yet still comfortable for pizzicato (plucked/picked) styles. The transition from nut to bridge features a carefully calibrated asymmetric convex curvature, providing optimal fingerboard relief at each position and facilitates an even 'growl' from the higher strings and a clear, powerful lower register.

The result is a remarkably comfortable, even feel for every style of performance. Bass guitarists will find the Omni Bass even more inviting than ever as a "cross-over" instrument, whilst traditional upright players will find the TransRadius design familiar since many upright basses are designed with some degree of compound fingerboard curvature.

For even greater control, players can adjust the two-way truss rod to tailor the neck relief to their particular needs.

Cascading Position Markers

Dots for each semi-tone cascade across the fingerboard, a unique configuration that provides a clear visual fingering reference. The logical dot pattern is of critical value to the novice player, and an invaluable reference guide for the seasoned pro.

Polar™ Pickup System

The Polar™ Bridge Pickup System combines great sound with directional sensitivity for a rich and expressive response to both Arco and Pizzicato techniques allowing the player to optimize bowed response and to control attack and decay characteristics for plucking. The Omni Bass responds to the bow with a natural and expressive voice, combining powerful bass resonance with brilliant harmonics. The strings are easily driven, making it possible for bassists with little bowing experience to add this beautiful dimension to their music. In either mode, the deep bass and brilliant highs possible with piezo crystal technology give the instrument a beautiful, dynamic, and versatile sound.

WAV instruments are battery-free, eliminating the hassle and cost of batteries while helping protect our environment, and can be played using any amplifier with a high impedance input, or with any other gear using a direct box.

Interchangeable Support Systems

NS Boomerang Strap System

Standard issue with the Omni Bass, the Boomerang Strap System fits comfortably over the shoulder just like a guitar strap, with two adjustable articulated arms and a pivoting hub allowing the instrument to be placed in virtually any position, accommodating all playing styles.

An alternative Frame Strap System offers full mobility and amazing comfort, with a lightweight structure supported by a single shoulder strap that holds the bass out from the body in the correct positions for upright pizzicato and arco styles.

The optional, self-standing CR Tripod Stand provides stable fixed support for the instrument. Virtually any angle can be set whether you prefer standing or sitting. Alternatively, an End Pin Stand provides a more traditional upright bass feel and is easily adjustable so that the instrument remains evenly balanced without support. With the addition of the End Pin Conversion Kit  the Omni Bass plus End Pin assembly can be "parked" on the Tripod Stand, holding the instrument upright for on-stand performance or secured when not in use.

NS Omni Bass Strings by D'Addario™

The Omni Bass is equipped with a dedicated string set developed in collaboration with industry leaders D'Addario.

Featuring a stranded steel core with stainless steel and tungsten windings, these precision polished, low-tension, flatwound strings are effortless to play and uniquely responsive, producing singing highs and a deep low register with greatly minimized finger noise.

The bright pizzicato growl provides an authentic traditional acoustic tone, yet these strings deliver plenty of sustain and drive when you need it. They also respond much quicker to the bow than traditional bass strings, so an expressive bowing technique is easier to develop and maintain.

The Omni Bass is also designed to accommodate any standard long scale bass guitar strings, adding unlimited set up options for musicians who want to explore and create their own unique sound.


A padded gig bag is included as standard, featuring a stand compartment, bow compartment, accessory pocket, handle and adjustable strap. Loaded weight is 6kg (15.2lb) including stand, and it will fit in the overhead luggage bin of most commercial aircraft.

An optional custom flight case is also available to order, constructed from aluminum edged plywood and measuring 145cm x 25cm x 25cm (57" x 10" x 10") with loaded weight of approximately 18kg (40lb) including stand.

Construction Solid, straight grain maple body and neck
Finish Flame maple face with a choice of Amberburst, Trans Red or Trans Black high gloss lacquer
Fingerboard Hand graduated, TransRadius™ Coform™ fingerboard, intonation referenced with cascading dot markers and side dots
Bridge Pickup NS Polar™ directional piezo pick-up system
Electronics Passive circuit with high impedance output
Controls 2-way toggle switch for Polar Pickup System (selects pizzicato/arco modes) / Rotary volume control / Rotary tone control (treble roll off)
Truss Rod Single action, accessible at nut for precise fingerboard relief
Tuning Machines 12:1 ratio, fully encased worm gear tuners, black finish
Length 111.8cm (44")
Width 15cm (5.7")
Thickness 10cm (4")
Weight - 4 String 3.2kg (7lb)
Weight - 5 String 3.23kg (7.2lb)
Scale Length 34" (86.4cm)
Strings NS Design/D'Addario NS710 flatwound, medium tension, stranded steel core strings
Strap INCLUDED NS Boomerang™ Strap System
Gig Bag INCLUDED NXT Series Padded gig bag with handle, back-pack style strap and external compartments for bows, stand and accessories
COUNTRY OF ORIGIN New Bohemia Electric Corp., Czech Republic
