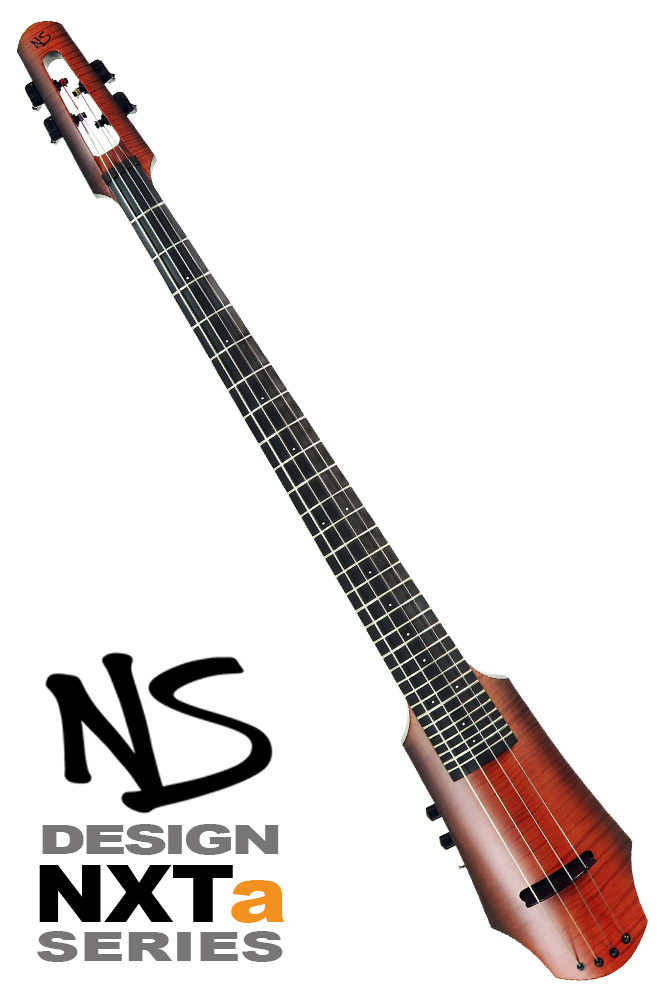

The NXTa Fretted Cello opens up a new horizon for progressive cellists looking for a great instrument on a limited budget.


These instruments, available in 4 & 5 string formats with a choice of Black Satin or Sunburst finishes, are crafted in the Czech Republic by the makers of the renowned NS Design CR Series and exemplify flawless workmanship and incredible value.

Adaptable to a nearly limitless range of music styles, The NXTa Cello brings unprecedented affordability to the player interested in world-class design, craftsmanship and performance. With a visual appearance a striking as its sound, the roadworthy NXTa is an exciting and reliable partner for the most demanding performance career.

NS Design NXT Fretted Cello


The Ned Steinberger designed NXTa Fretted Cello - the latest addition to the NS orchestra, is a unique instrument that blends the character and advantages of a guitar with the power and performance of an electric cello, opening up dynamic new possibilities.

Whilst a somewhat radical concept, even the most traditional cellist will find that frets offer certain advantages, as well as new performance and textural possibilities. The most obvious of these is that - particularly when playing pizzicato - frets provide “open string” sustain for every note. In addition, the fretted cellist can more fully exploit techniques such as tapping, hammer-ons, and “stepped” glissando. Frets also guarantee accuracy of pitch in high volume performance situations where there may be less-than-optimal individual monitor setups.

NS Polar Bridge Pickup System


Pizzicato and arco techniques have almost unlimited expressive potential, thanks to the NS Design Polar™ Pickup System...  Two separate mounted transducers beneath the bridge offer unlimited expressive potential and powerful dynamics. With each pickup specialized for a specific task, a convenient switch gives you the choice to select a traditional arco mode for percussive attack and a dynamic bowed response, or the pizzicato mode for a smooth, sustained tone.

Dual Mode Output


New NS Design dual mode signal output electronics take the convenience, versatility and performance capability of the NXTa to another level.

Active Mode - Using the supplied charger, the NXTa connects into any AC outlet for 60 seconds, powering the capacitor powered active circuit for up to 16 hours of performance time. The instrument can then be plugged straight into any low or high impedance device, no direct box necessary.

Since there is no signal loss over the full frequency spectrum of the instrument, the fundamentals of every note remain clear and strong, even with extra-long cables.

Passive Mode - The NXTa can be played in this mode when using a direct box or an amplifier with high impedance input. This mode provides performance capabilities identical to the original NXT.

Eco-Friendly Operation - NXTa instruments are battery-free, eliminating the hassle and cost of batteries while helping protect our environment.

Construction


The solid maple body and neck, together with the graduated ebony fingerboard, deliver a rich, full tone that rings true for every note. Asymmetrical fingerboard relief provides extraordinary ease of playability from the lowest to the highest positions. To suit individual player preferences, the fingerboard relief can be adjusted via the truss rod in the neck, and the string height is readily adjustable at the bridge.

An escutcheon pin on the neck, corresponding to the location of the heel on an acoustic cello, is standard; a more conventional wooden neck heel is also available for installation.

Strings


Equipped with NS Contemporary Bass Strings by D'Addario™, the NXTa is compatible with most standard electric or traditional acoustic upright bass strings. In combination with the easy adjustment of its basic set-up parameters, this versatile instrument is adaptable to many different styles of music.

Accessories


  • NXT Cello Tripod Stand - Sturdy, black painted tubular steel construction. Fully adjustable for a wide range of playing styles, this cello specific variant is shorter than the equivalent NXT Double Bass stand to better facilitate seated performance. Folds for easy storage and fits into the NXT gig bag (Weight is 2.7kg/6lb).

  • NXT Gig Bag - Supplied as standard, the NXT nylon gig bag, with carry handle and shoulder strap, has a padded inner case for the instrument and a zipper pouch for the tripod stand as well as a bow compartment and storage pocket with room for charger and accessories. Dimensions : 99cm (39") long x 18cm (7") in diameter. Loaded weight is 5kg (11lb) including stand. The compact gig bag fits in the overhead luggage compartment of most commercial aircraft.

Optional Extras


  • NS Traditional Cello End Pin Stand - Provides the traditional cello points of contact and position and is the best choice for cellists who have an animated style of playing while seated, or who play the instrument at a more horizontal angle.

  • NS CR End Pin Stand - Offers full freedom of movement. Height, tilt and "right bout" angle are fully adjustable providing a more conventional feel.

  • NS CR Tripod - Provides stable support for both the NS Cello and Double Bass with full height and tilt adjustments allowing the player to select the ideal position, seated or standing, vertical or horizontal. Folds for storage and fits in the NS gig bag.

  • NS CR End Pin Stand Conversion Kit - Attaches the NS CR End Pin Stand to the CR Series Tripod Stand to hold the instrument upright for on-stand performance or when not in use.

  • NS Frame Strap System - Allows the cellist to stand up with full mobility for a new experience of freedom and expression.

  • NS Flight Case - Aluminum edged plywood measuring 136cm x 28cm x 27cm (53.5" x 11" x 10.5") with loaded weight of approximately 18kg (40lb) including tripod stand.

  << NS Design NXTa Cello User Manual

  << NS Design Fretted Cello Intonation Instructions

Get The RIGHT Amplifier for your NS Instrument


Designed by British audio electronics guru Phil Jones, the CUB AG-100 is a sophisticated acoustic instrument amplifier with a wide frequency response, exceptional hi-fidelty sound, transparent tonal reproduction and diminutive frame - the perfect partner to the NS Design range of violins, violas and cellos.

"for acoustic endeavours and small rooms, or a monitor for lower volume gigs, you're unlikely to find anything that sounds better at any price or size"  Guitar World • June 2007

BUY HERE • BASS CENTRE PRICE • JUST £365

 NS Design NXTa Series Cello

Construction Solid, straight grain maple body & neck
Finish Black Satin with maple face or Sunburst with flame maple face
Fingerboard Hand-graduated ebony • Intonation referenced with cascading dot markers • Fretted Model also available
Bridge Pickup NS Polar™ directional piezo pick-up system
Controls Rotary volume control • Tone control (treble roll off) with push-pull selection between Active and Passive output mode • Arco/Pizzicato toggle switch for Polar Pickup
Truss Rod Single Action, accessible at nut
Tuning Machines 12:1 ratio, fully encased worm gear tuners, black finish
Length 94.2cm (37")
Width 13.9cm (5.5")
Thickness 9.4cm (3.7")
Weight NXT4a : 1.86kg (4.1lb) • NXT5a : 1.9kg (4.2lb)
Scale Length 69.5cm (27.36")
Strings NS Design/D'Addario medium tension, stranded steel core (NS510)
Stand NXT Cello Tripod Stand. Black painted tubular steel, adjustable, folds for easy storage & fits into supplied gig bag (2.7kg/6lb)
Gig Bag Nylon padded standard NXT gig bag, with handle and shoulder strap; 99cm (39") long; 5kg (11lb) loaded weight

The NS Design Passive JackPot™ Potentiometer

U.S. Patent No. 8,253,007

All NXT Series instruments now boast an exciting new performance feature by Ned Steinberger, the NS JackPot potentiometer.

Whether you know it or not, your volume and tone pots are robbing tone from your instrument even when they are turned up full. The JackPot is a combination potentiometer and rotary switch which is able to completely bypass the instruments' volume and tone circuitry, producing a stronger signal level, greater warmth, and more overall intensity.

How the Jackpot works

Conventional controls reduce the volume level by bleeding a portion of the output signal to ground. Rotating the knob counterclockwise increases the portion that is connected to ground, thus reducing the output level until it is fully grounded and the volume is zero. However, when the knob is rotated fully clockwise for maximum volume, there is still a portion of the signal that bleeds to ground, and as a result the output level never reaches the full level the pickup would achieve if it were wired directly to the output jack.

The JackPot’s rotary switch clicks open when the knob reaches the end of its full on (clockwise) rotation. The open switch lifts the ground to the pot, eliminating the load on the pickups and allowing the full signal to reach the output jack. When the knob is rotated counterclockwise, the ground to the pot is reconnected so the pot returns to standard operation. In this mode the sound and function are exactly the same as an ordinary control.

With the JackPot, players can run full on, with the pickups wired directly to the output jack, yet still have a trusty volume knob to back off instantly to a lower level when needed.
